#4 reasons to have a site survey

Posted by Static Trader on September 13, 2019

After searching high and low, finding the perfect static caravan to bring onto your plot is a great moment.

But getting it there can be a challenge which could end in disappointment if you don’t bother with one of the essentials: a site survey. After all, you don’t want the static caravan of your dreams caught in the nightmare of not being able to get it safely onto your plot.

For a private plot particularly (that is, on your own private land, rather than a static caravan site or holiday park) a site survey not only helps to ensure that the location and plot you’re anticipating for your static caravan is suitable, it’s also vital for knowing whether having a static caravan delivered and manoeuvred onto the plot is even possible.

Whether you’re using the Static Trader siting service, an alternative company or siting your static caravan yourself, a site survey is recommended practice for 4 very good reasons …

#1 Size matters

A site survey puts size at the centre of the inspection. This relates to the size of:

    • *  The plot -and points of access to it.
    • *  The static caravan – if you’ve already found the caravan you want, a site survey will inform whether it’s possible to actually get this to your location and onto the site. Alternatively, a site survey can help you with fact-finding and is part of due diligence in finding out what size of static caravan would be will optimum for the site and access to it. Once the suitable size options for placing on your site have been ascertained, you’ll then have a better idea of what models of static caravan to include in your search.
    • *  The size and location of any possible restrictions on the highways such as bridges or on-site issues such as gateways.
    • *  Once the facts have been gathered and sizes and possible restrictions clarified, the site survey formalises what’s actually required, including:
  • The size of the vehicles + static caravan when it is transported to the site: this type of transportation is a real exercise in haulage, as the static caravan needs to sit on top of another vehicle. In our business, this means an articulated or rigid lorry for transportation. As such, a static caravan in transport is always designated as an abnormal load.

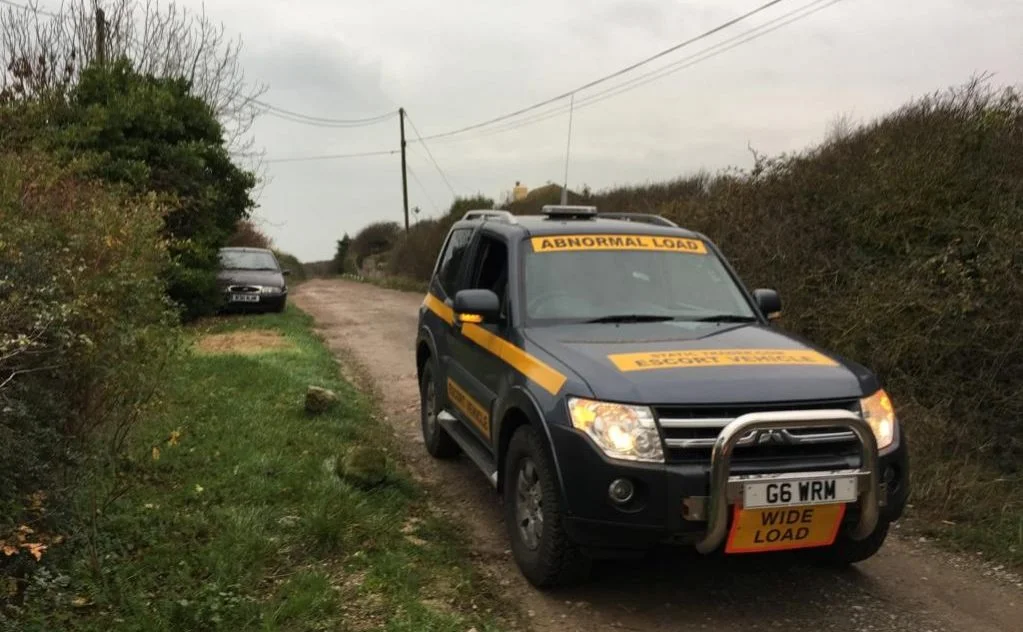

  • Movement on the highways: abnormal loads always require a movement order to be created in conjunction with the police and the highways control. The movement order takes the size of the static caravan into account and will specify the route the transportation team should take, in order to avoid problems. Having a site survey also helps inform this, in case of diversions or traffic issues on the day of delivery.

#2 Plot problems

At a site survey, we’ll consider the plot in a year-round context and be able to advise you not only on what to consider at the point of bringing the static onto the plot, but also in the future. For example, if the land is very boggy then there may be a real risk of subsidence or flooding, so we’ll be able to advise not only on whether the plot is suitable, but also how to prepare it with all seasons in mind.

Apart from size, another plot problem which comes up regularly is to do with access to utilities. Of course, if you want to go off-grid and are buying an all-electric static caravan to convert to solar power then this is less of an issue. But if you’re looking at running in mains power, water and making sanitary provision (such as adding a septic or Tuffa tank) – all of those utilities which bring the convenience and comfort from your static caravan, then you’ll need to consider carefully how your plot can be organised to provide this.

Considerations such as utilities can form part of the site survey, as they may well also end up dictating exactly where your static caravan will need to be positioned within the plot.


Ask us about our transportation and siting services, we’re always happy to help and advise.

#3 Access for transport

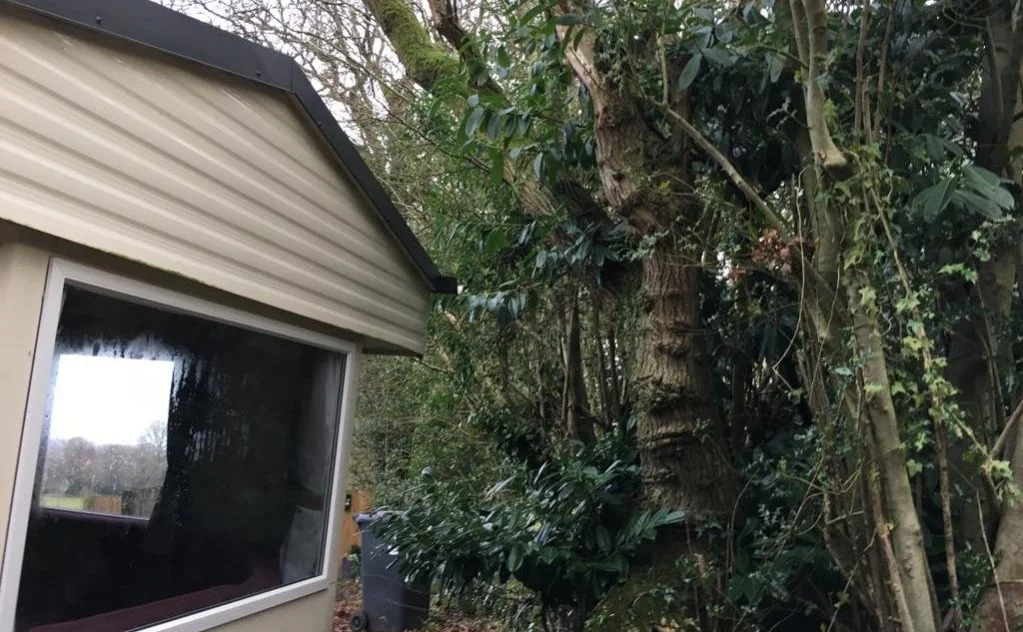

As mentioned previously, identifying obstacles to accessing the plot is essential. From ornamental entrances, trees, overhanging branches, overgrown hedgerows, limited gateway access – we’ve seen it all and know why it’s important to pay attention to even the smallest details during a site survey.

This is why, following a site survey, we’re able to give advice will be given for further action to help the delivery run smoothly. This may include aspects such as:

  • *  Seasonal issues such as extremely wet conditions, which could make access impassable for the weight of a static and the vehicles needed to transport it. In some cases, wet ground at the access point won’t necessarily impede successful delivery and siting, as siting boards and ground guarding materials may be used. However, a site survey will help to inform what may be needed if the weather turns.
  • *  Pruning back overgrowth.
  • *  Temporary removal of obstacles such as gates with limited openings, fences, posts and even walls.

#4 Seeing the unforeseen – ahead of time!

Checking the site and access to it is the obvious reason for a site survey. We’ve mentioned it before but it’s certainly worth mentioning again: the site survey not only looks at the location and access to it, but also considers this in relation to our knowledge of the vehicles being used to transport the static caravan.

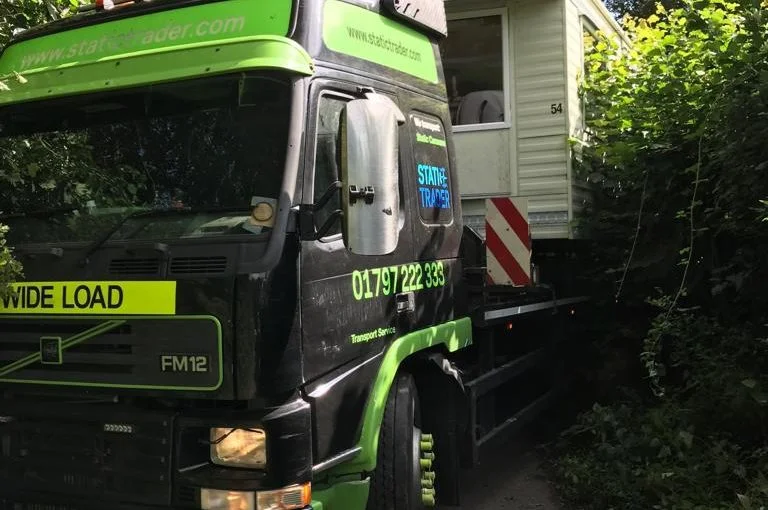

Statements such as “buses come down the lane all the time” and “the refuse lorry gets through without problem” have often been made by customers who choose not to have a site survey. Unfortunately, there can be a nasty shock awaiting all concerned when an articulated lorry with a 40′ static on the back tries to come through that very same lane.

This is because the dimensions of the access vehicle with the static on top is what counts … and this is rarely as ‘small’ as a bus or refuse cart. Add to this the length of the vehicle and tight turns and it’s really not worth the risk of a static caravan ending up just a mile from the address with no way to get through.

Of course we always carry out due diligence as much as possible, but without the benefit of a site survey, there’s plenty of information we’re unlikely to find out until we get there.

Final advice:
  • We’ll always work with you to arrange a site survey at your convenience, but it’s essential that it takes place in daylight.
  • We conduct our own due diligence, but we do rely on your knowledge of local routines when it comes to confirming delivery dates. Please remember local collection days, such as rubbish and recycling pick-ups and advise us on the days to avoid.
  • Please always act on any advice given in the follow-up to a site survey. We give this advice so that you’ll have the smoothest possible delivery – so help us to help you by getting any clearance and preparation completed well before delivery day.
You might also like to check out Byron’s video on our Site Survey page, for more information.
